tuika 0.12.0

Released 2026-09-15. crates.io · docs.rs · GitHub release

Released alongside tuika-charts 0.2.0, tuika-codeformatters 0.6.0, tuika-html 0.2.0, and tuika-mermaid 0.4.0. Every companion’s tuika requirement moves to 0.12, and all four drop the ratatui-core (or ratatui) dependency they no longer use.

Highlights

tuika owns the cell grid — Rect, Color/Style, Line/Span, Buffer/Cell, Backend, and Terminal are tuika’s own types now, so a host takes one crate instead of two and is no longer exposed to a ratatui-core major bump. Existing ratatui widgets still compose, behind the optional ratatui feature.

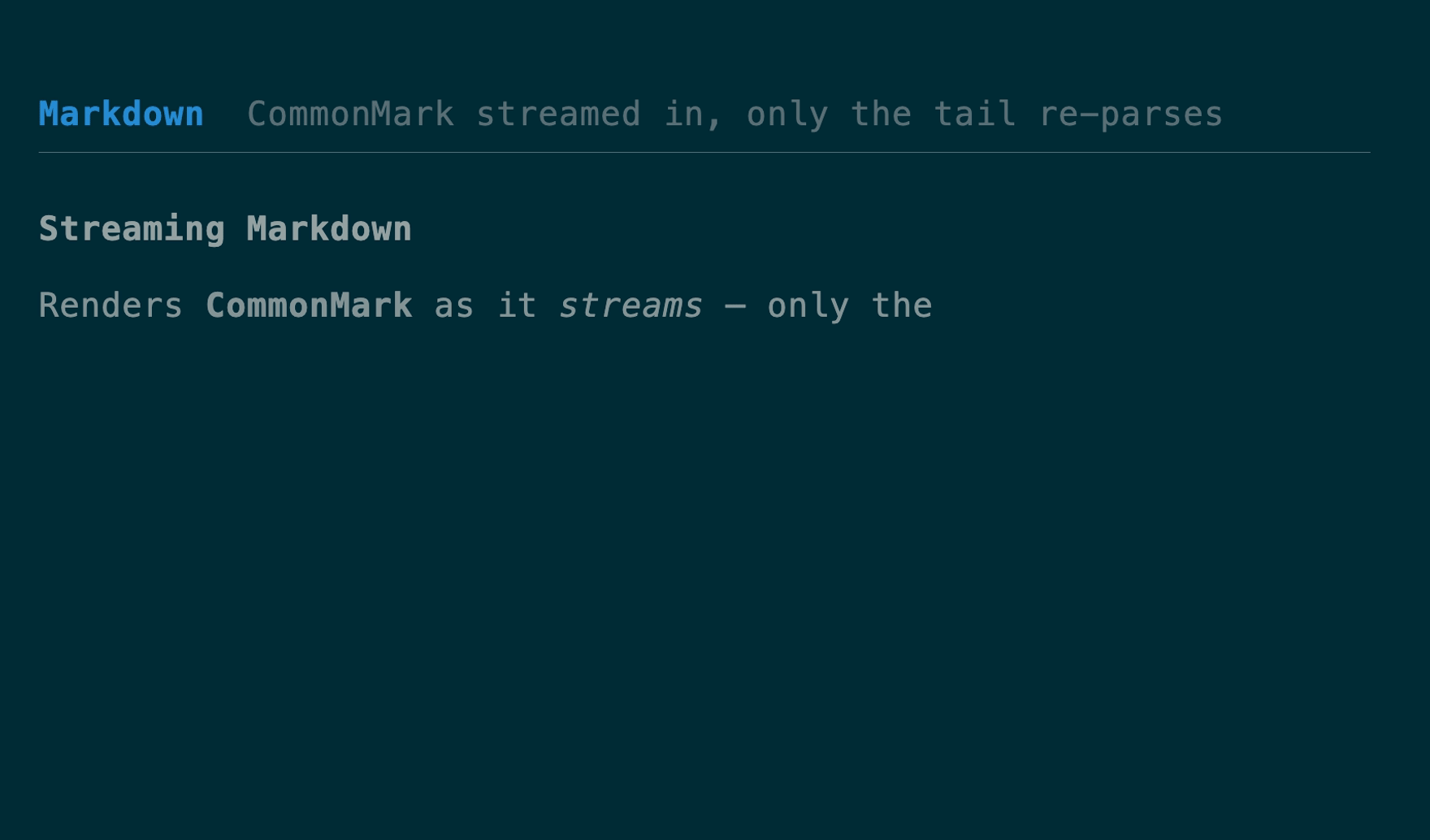

markdown demo

  • Dependencies: 55 crates to 32; the cold dependency build drops from roughly 32s to 6s.
  • Performance: render, frame_windowed, and the scroll paths fall 7.3–7.4% in instruction count.
  • Correctness: Span::width and Line::width now count grapheme-aware display columns, so they agree with what Surface actually paints.

Rendering is unchanged on screen, so this release carries no new recording.

Breaking Changes

  • tuika no longer depends on ratatui. It now owns its own Rect/Position, Color/Modifier/Style, Line/Span, Buffer/Cell, Backend, and Terminal. Every one of those types moved from ratatui-core to tuika, so any signature naming one changes.

    For most hosts the migration is an import change — the canonical path is unchanged:

    // before
use ratatui_core::layout::Rect;
use ratatui_core::style::{Color, Modifier, Style};
use ratatui_core::text::{Line, Span};

// after (or just `use tuika::prelude::*;`)
use tuika::ui::{Color, Line, Modifier, Rect, Span, Style};

    A host driving its own terminal takes tuika::term::terminal::{Terminal, TerminalOptions, Viewport} and tuika::term::backend::CrosstermBackend instead of ratatui’s, and tuika::term::testbackend::TestBackend in tests.

    The types are deliberately shaped like the ones they replace, with two behavioral notes:

    • Span::width and Line::width count grapheme-aware display columns (width::str_cols) rather than per-char widths, so they now agree with what Surface actually paints. A line containing a ZWJ emoji measures narrower than before — and correctly.
    • Cell stores short grapheme clusters inline instead of in a CompactString. Cell::new is no longer const; use Cell::default() for a blank cell.

  • Ratatui interoperability is now behind the ratatui feature, off by default. Surface::render_ratatui, tuika::interop, and RatatuiView need it; a host wrapping ratatui widgets adds:

    tuika = { version = "0.12", features = ["ratatui"] }

    Every ratatui widget still works. The boundary is no longer a shared Buffer — the two crates no longer share a cell type — but a cell-by-cell conversion over the rendered area, which render_ratatui was already doing a copy for.

  • Surface::render_ratatui was split. The general escape hatch — a private scratch buffer, composited back through the clip — is now Surface::render_scratch and takes tuika’s Buffer. render_ratatui is the ratatui-specific wrapper around it. A caller using it for scratch access rather than for ratatui widgets should switch to render_scratch, which needs no feature.

  • Line::raw and Line::styled split their content on line breaks, one span per line, matching what they replaced. Line::raw("") therefore yields a line with no spans.

Added

  • Surface::render_scratch — clipped scratch-buffer access without ratatui.
  • Buffer::set_style, Buffer::content(), Cell::raw_symbol() (tells a wide grapheme’s placeholder apart from a blank cell).
  • framebuffer::QUADRANTS — the sixteen quadrant block glyphs, previously reached through ratatui_core::symbols::pixel.
  • Style::{bold, dim, italic, underlined, reversed, crossed_out} shorthands.
  • tuika::term::backend::CrosstermBackend and tuika::term::testbackend::TestBackend are public, for a host driving Terminal itself.

Changed

  • Dependencies: 55 crates to 32. Dropping ratatui-core removed 23, including kasuari (a Cassowary solver), lru, and a second hashbrown — all of which existed for ratatui_core::layout::Layout, which tuika replaced with its own flex solver and never called — plus strum, compact_str, itertools, unicode-truncate, and a second syn major version. The cold dependency build drops from roughly 32s to 6s.
  • Rendering is ~7% cheaper. render, frame_windowed, and the scroll paths fall 7.3–7.4% in instruction count, because a Cell now stores short grapheme clusters inline. The markdown paths rise ~2%, the cost of measuring widths grapheme-aware; the benchmark baseline is updated accordingly.
  • scrolling-regions is now a feature of tuika’s own Backend trait, and no longer pulls in ratatui-crossterm to forward a flag.
  • The companion crates no longer depend on ratatui. tuika-charts, tuika-html, and tuika-mermaid dropped ratatui-core, and tuika-codeformatters dropped the full ratatui umbrella; none of them had named a ratatui type since tuika took over the cell grid. ratatui is no longer part of tuika-codeformatters’ public interface, so a dependant pins only tuika.
  • Public documentation follows the new model: the guides, the component gallery, and the getting-started page import from tuika::ui instead of ratatui::*, and no longer describe ratatui as running underneath.

Fixed

  • The workspace builds on its declared MSRV again. A dependency in the root manifest was written as a multi-line inline table, which TOML 1.0 does not allow and the Cargo on Rust 1.88 rejects outright — so cargo failed to parse Cargo.toml before compiling anything. Only the manifest changed; no dependency version or feature moved.

    The MSRV CI job did not catch it because it never ran the MSRV: the job set 1.88 as the rustup default, which rust-toolchain.toml’s development pin outranks, so every check ran on the newer toolchain. The job now pins RUSTUP_TOOLCHAIN and fails if the active toolchain is not the rust-version in Cargo.toml.

What’s Changed

  • refactor(deps)!: own the cell grid and drop ratatui (#114)
  • fix(ci): make the MSRV job run the MSRV (#131)
  • fix(demos): re-record scroll and close the broken-capture class (#132)
  • chore(deps): drop the companion crates’ unused ratatui dependencies
  • docs: retire ratatui from the guides, gallery, and durable knowledge
  • fix(release): keep companion dev-dependencies out of the published manifest
