Charts

tuika-charts defines one chart model for two terminal rendering paths. A graphics-capable terminal gets a smooth RGBA plot; every other terminal gets a dense Unicode plot. Applications do not keep two chart implementations or ask users to choose a mode.

Portable cells	Terminal graphics

Adaptive by default

Chart is a normal View. When an application runs through tuika’s Runner, the framework detects the terminal and owns the image lifecycle:

Kitty, Ghostty, and WezTerm receive raw RGBA through the Kitty graphics protocol.
iTerm2 receives a PNG through its inline-image protocol.
a Sixel-capable custom host can select Sixel explicitly.
all other environments render directly into terminal cells.

The selection changes fidelity, not meaning. Both paths share the same title, legend, axis tick labels, series, colors, numeric domains, clipping, empty state, and handling of non-finite points. The graphics plot is an image, while its title, legend, and tick labels remain cells for crisp, consistent text.

let chart = Chart::new()
    .title("Requests")
    .series(Series::line("api", points));

// Return `chart` from Application::view. Runner supplies graphics when the
// terminal supports them and otherwise leaves Chart on its cell path.
Runner::new(RunnerConfig::default())
    .run(&Theme::default(), &mut app)?;

Direct calls to paint use cells by default, making in-memory tests stable. Custom terminal hosts can supply ImageSupport and ImageLayer through RenderCtx::with_image_graphics, then emit and clear that layer after each cell frame.

Series gallery

Every pair below is generated from the same runnable example at the same size. The left capture disables graphics signals; the right capture runs through Ghostty and exercises the actual Kitty image output.

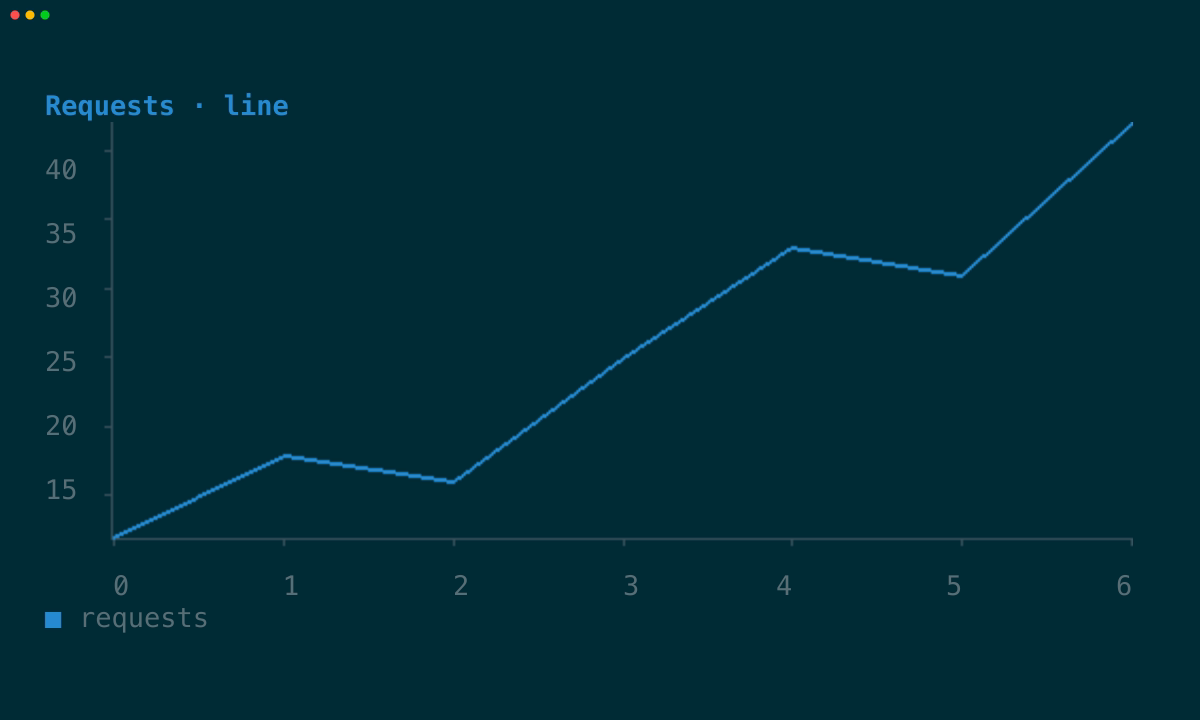

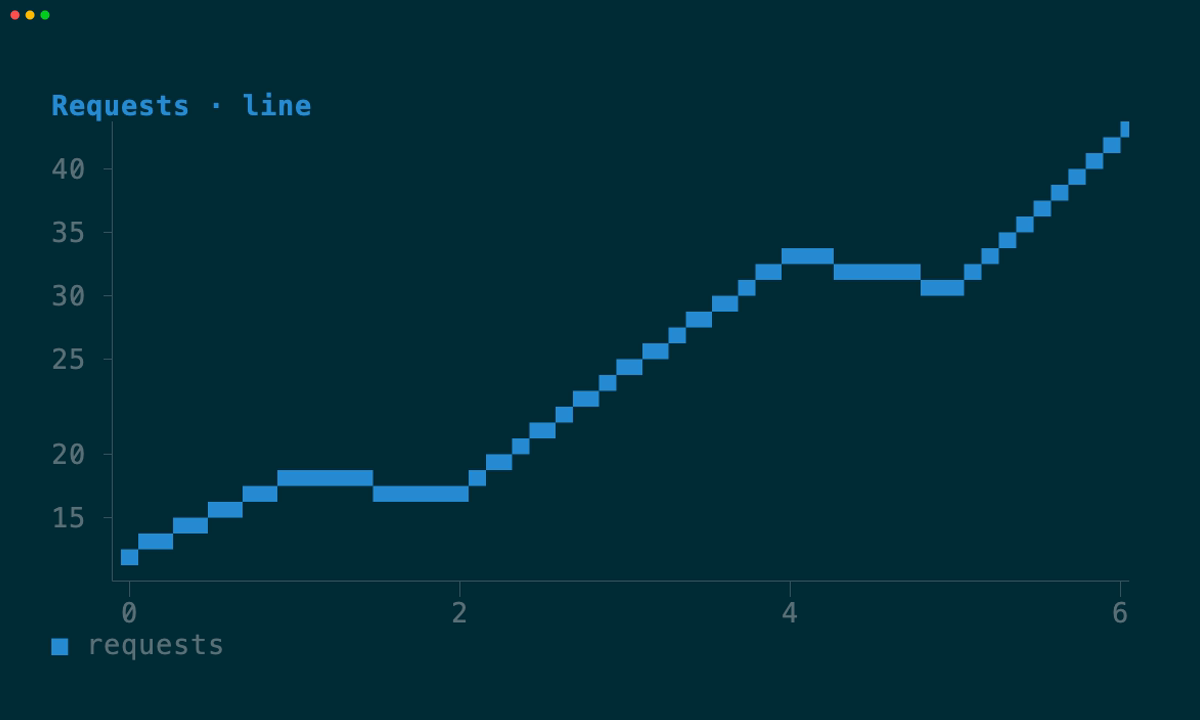

Line

Use a line for connected samples and trends.

Cells	Graphics

Area

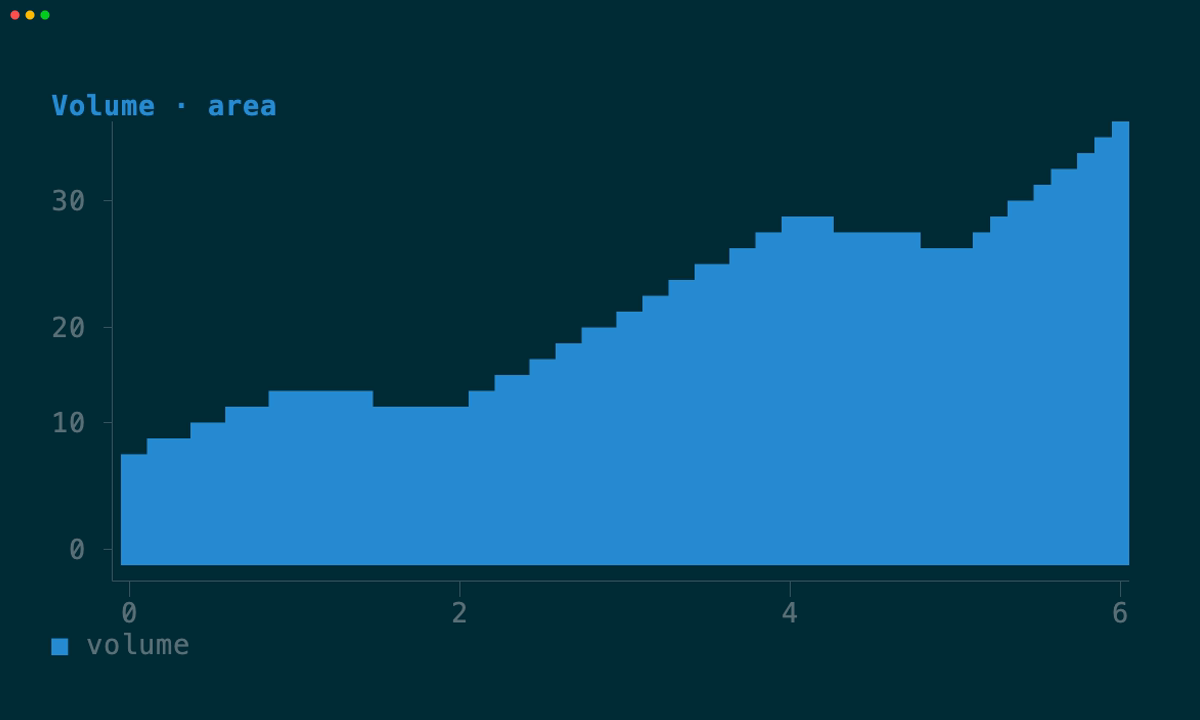

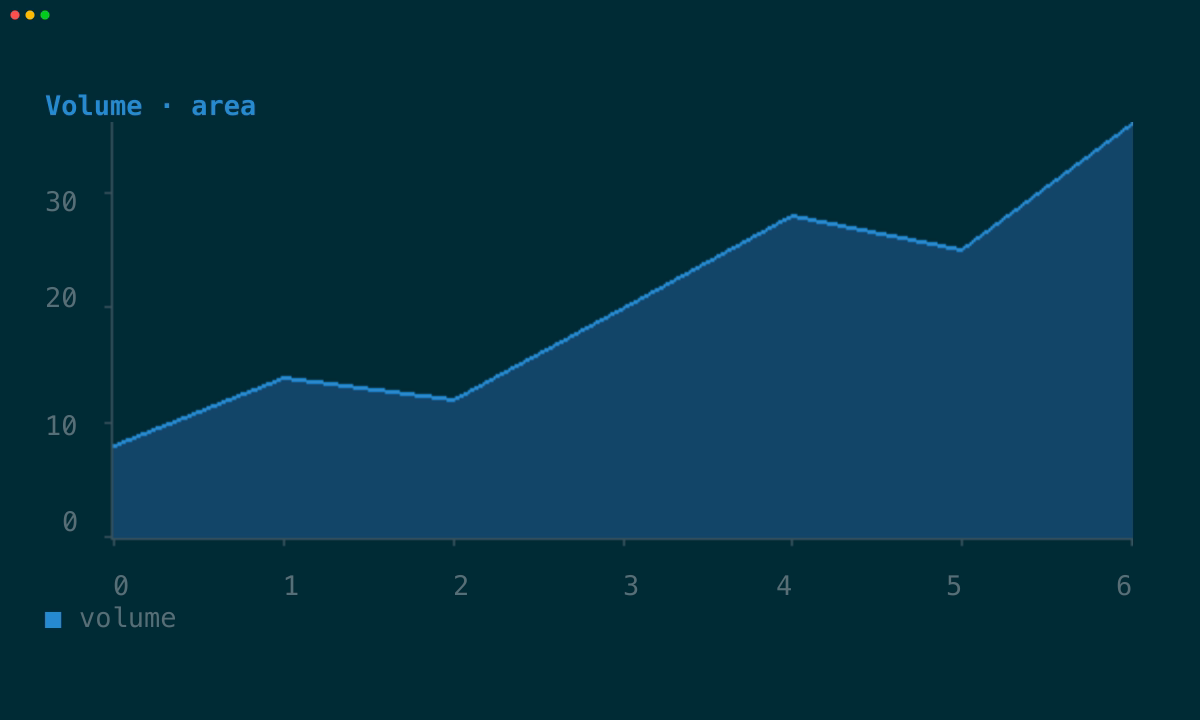

An area connects samples and fills the space down to the plot baseline. The cell renderer shares one quadrant boundary between edge and fill, preventing gaps or fill above the line; graphics mode can keep a bright edge over a dimmer fill.

Cells	Graphics

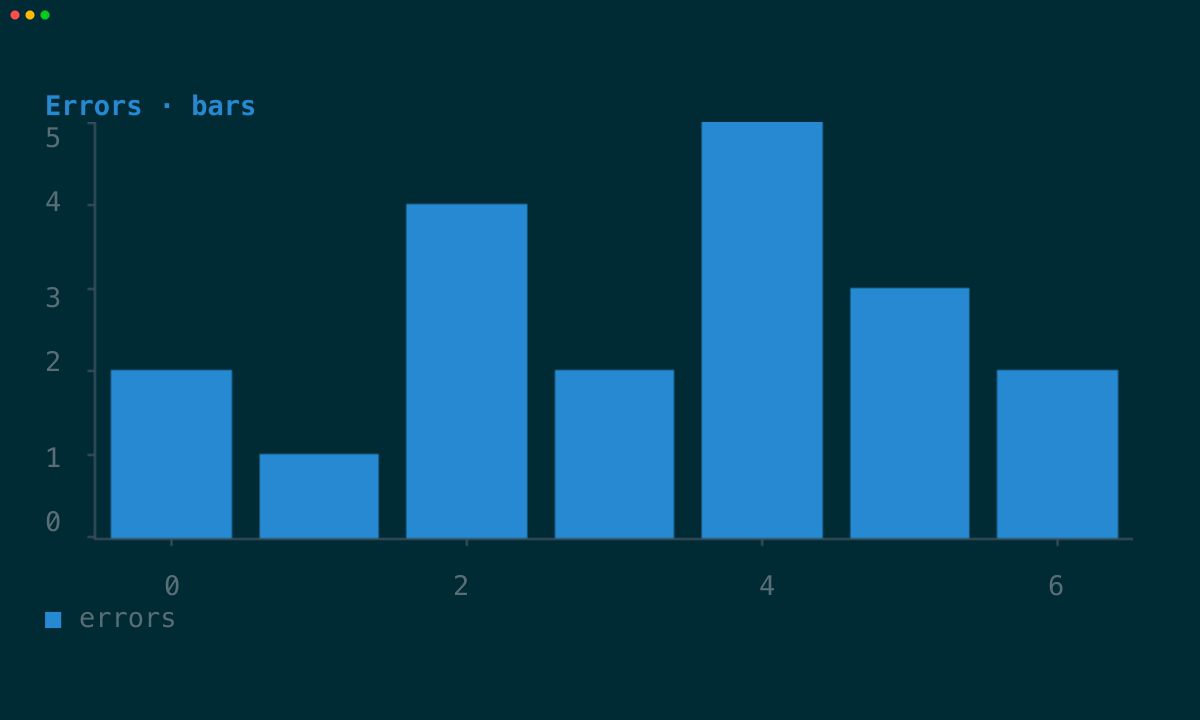

Bar

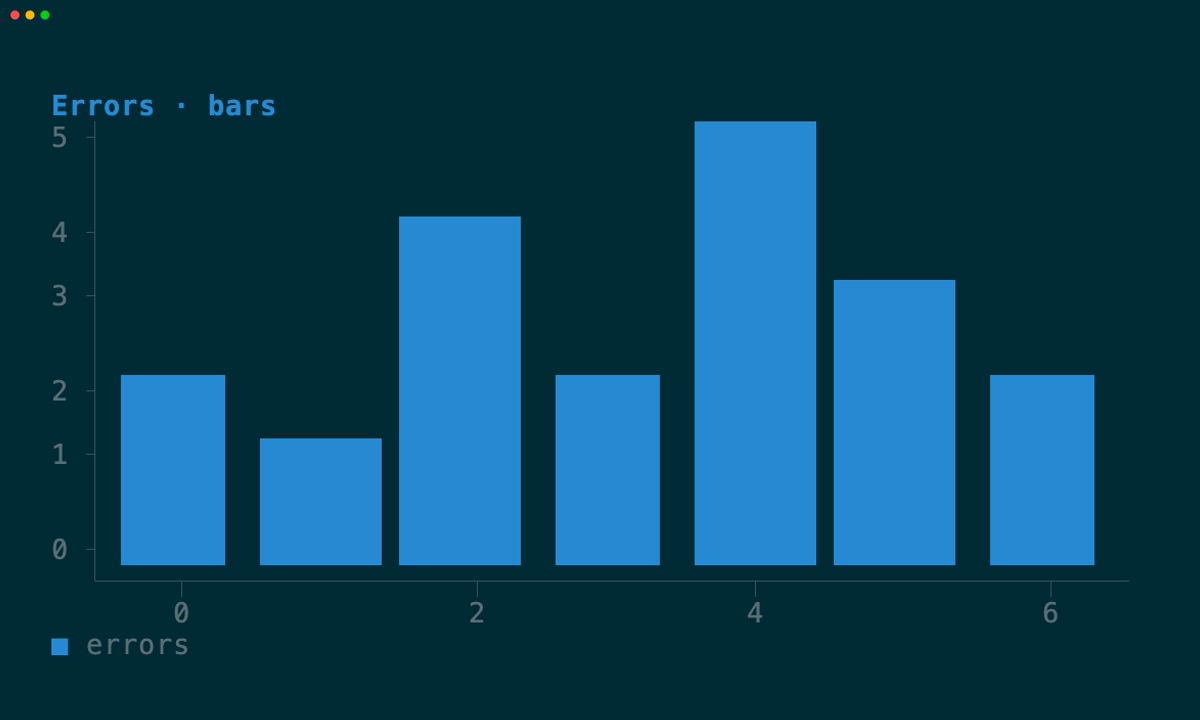

Bars are vertical marks centered on numeric x coordinates. Automatic x domains reserve half a bar interval beyond the first and last values so edge bars remain inside the plot.

Cells	Graphics

Scatter

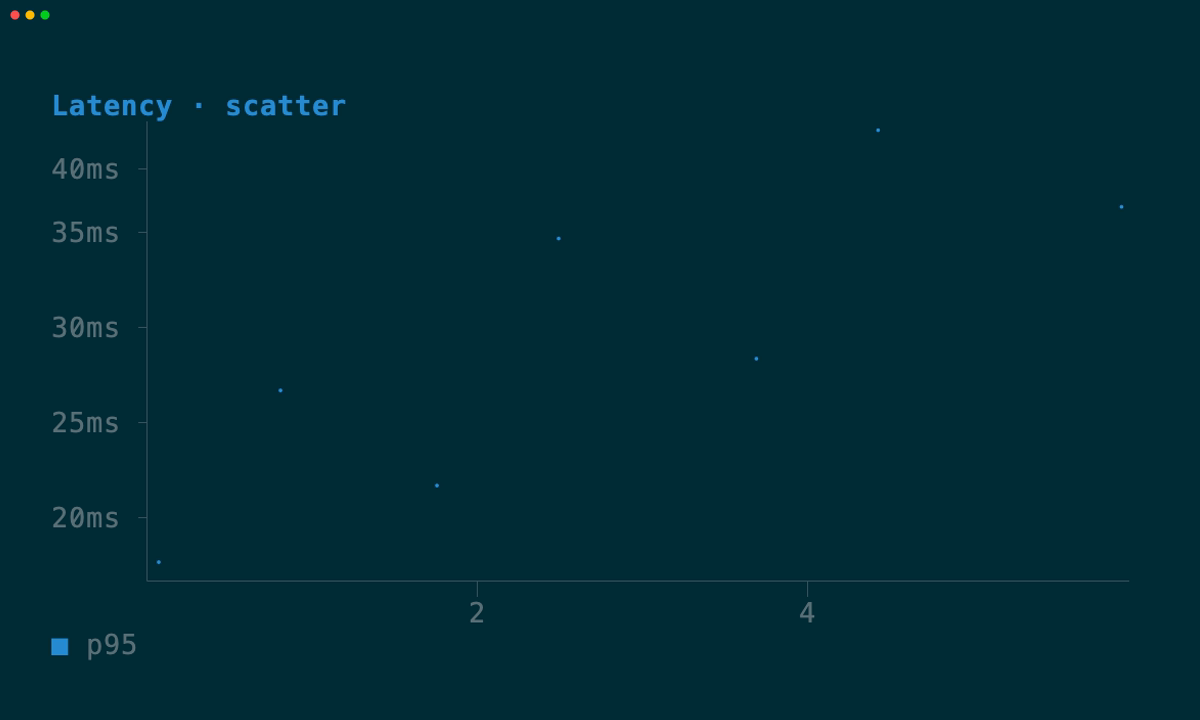

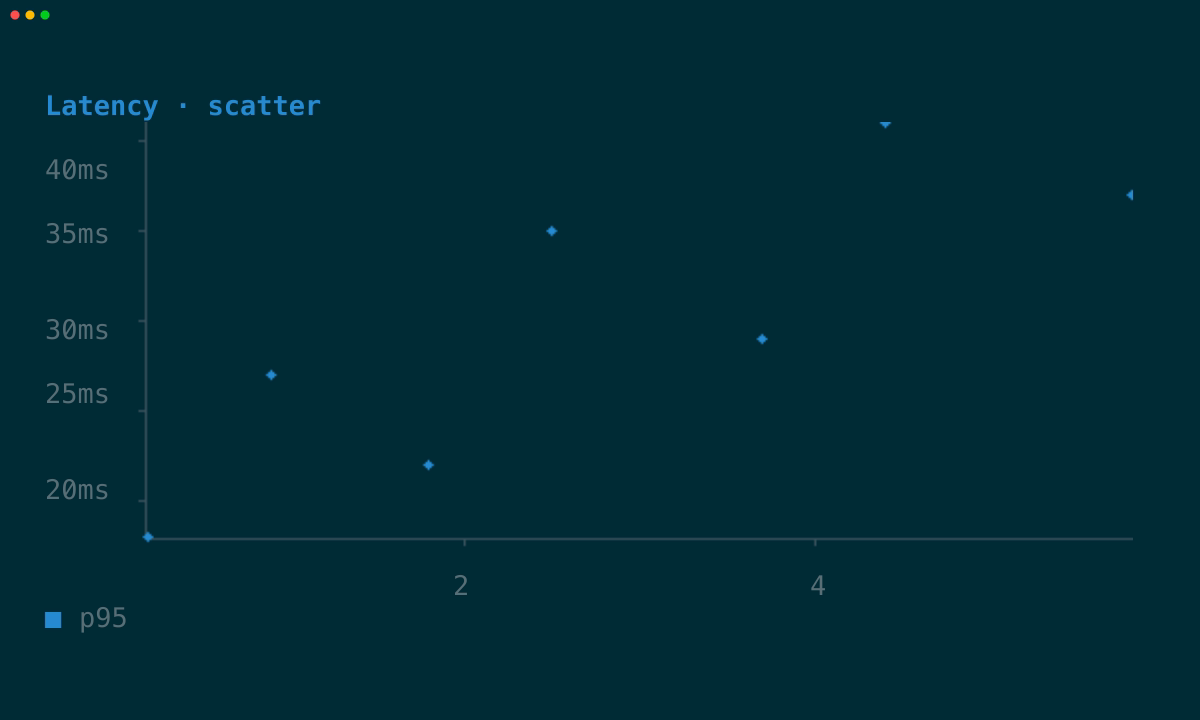

Scatter series keep samples independent. The portable path uses Braille’s 2×4 subcell grid; graphics mode uses pixel marks.

Cells	Graphics

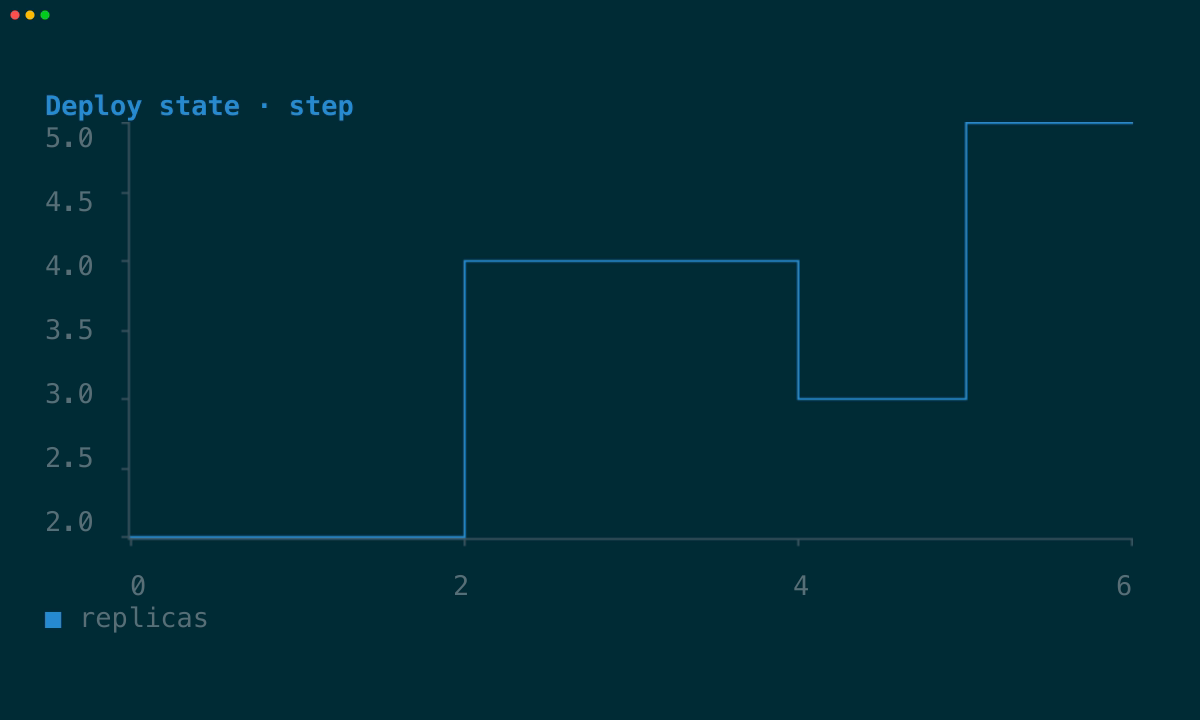

Step

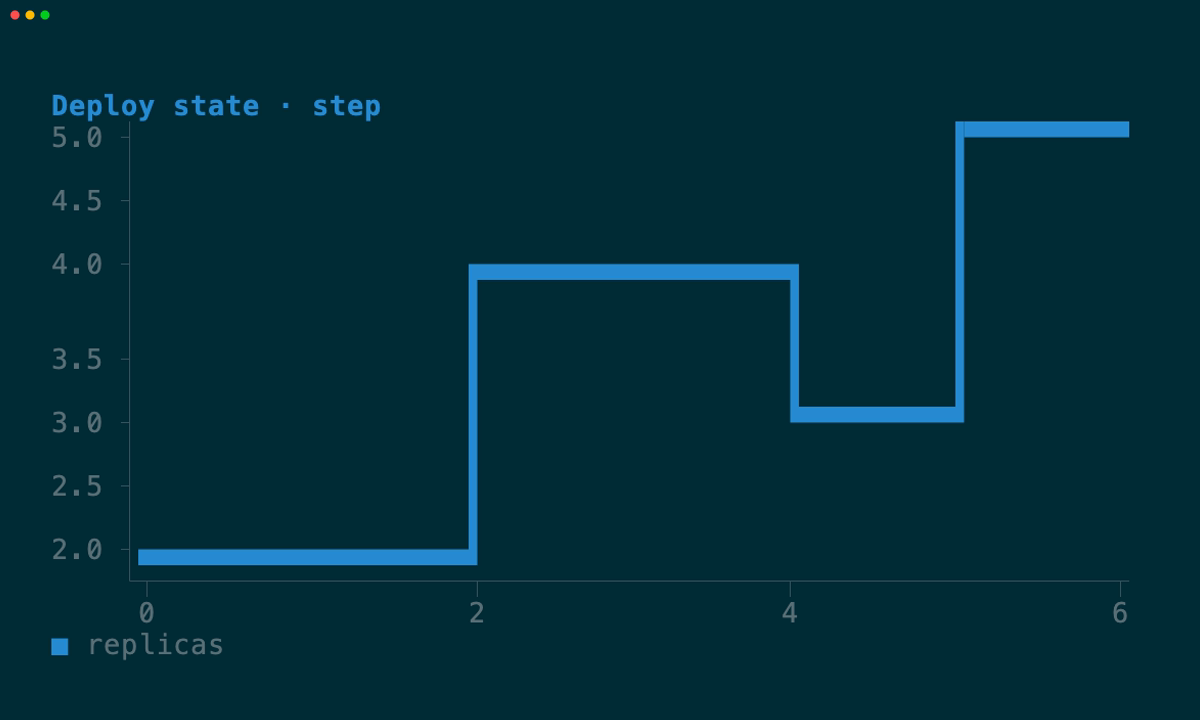

Step series draw horizontal-then-vertical transitions, useful for replicas, states, thresholds, and other values held until the next sample.

Cells	Graphics

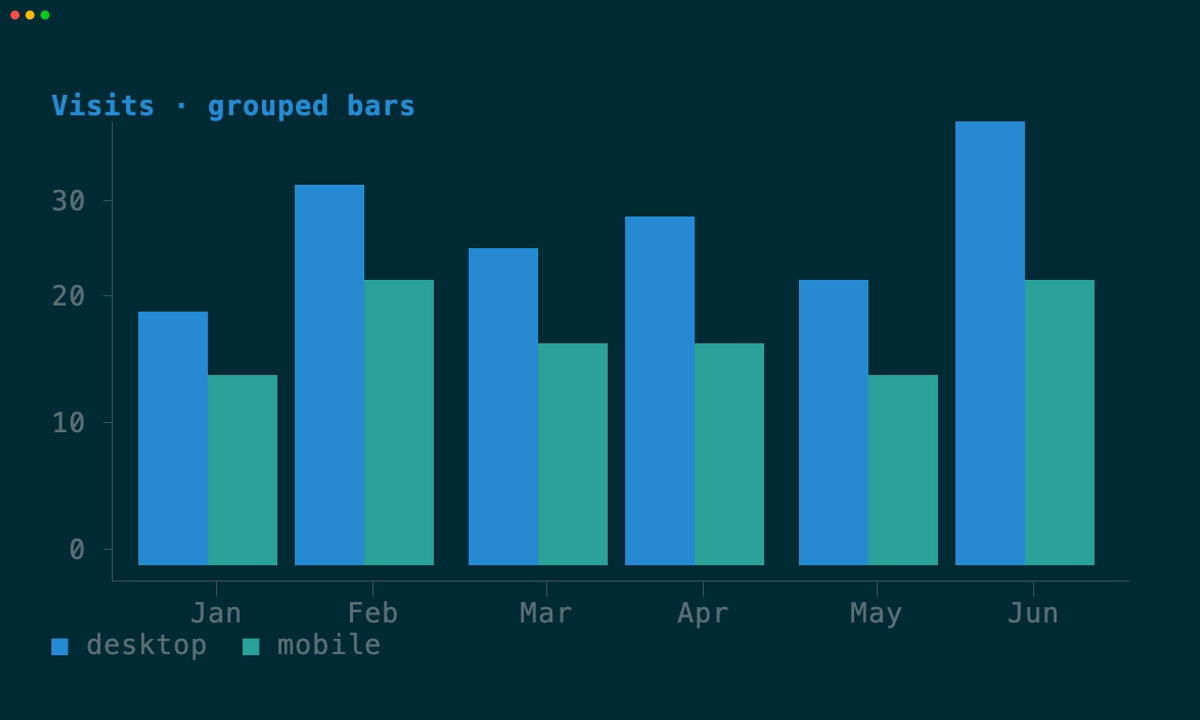

Grouped bars

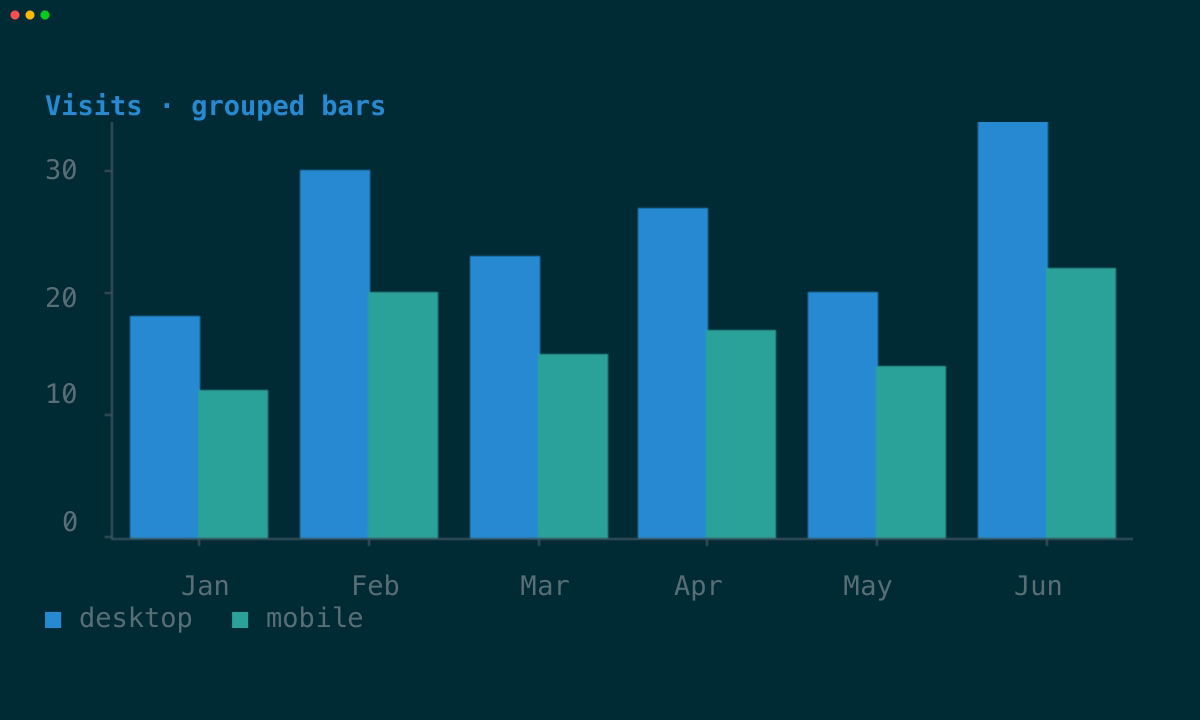

Several bar series share a category band, each taking a slot inside it with a gutter between neighbouring groups.

Cells	Graphics

Stacked

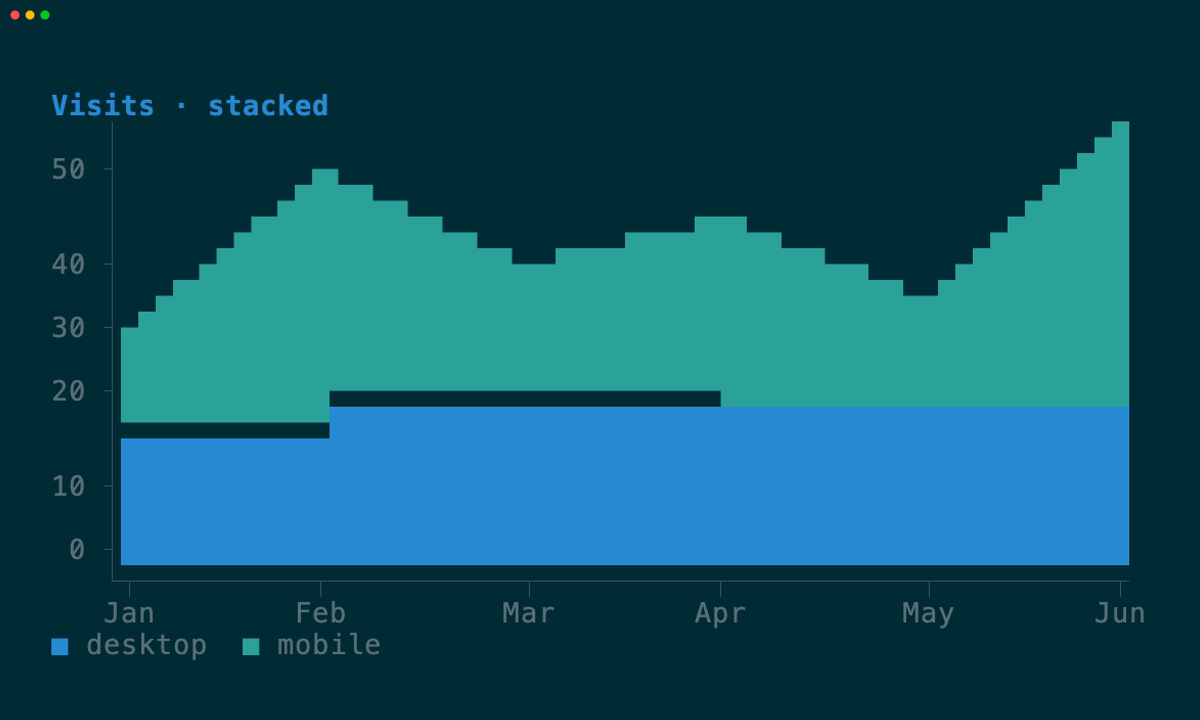

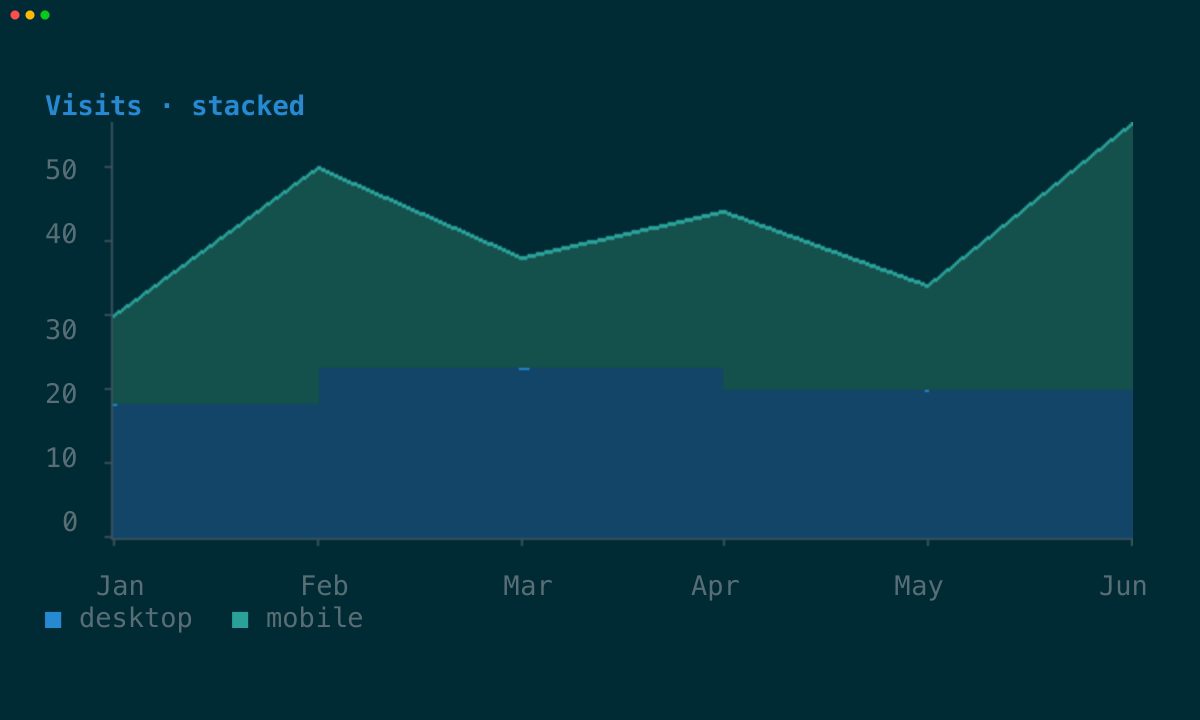

Chart::stack sums bar or area series at each position, each starting where the one below it ended.

Cells	Graphics

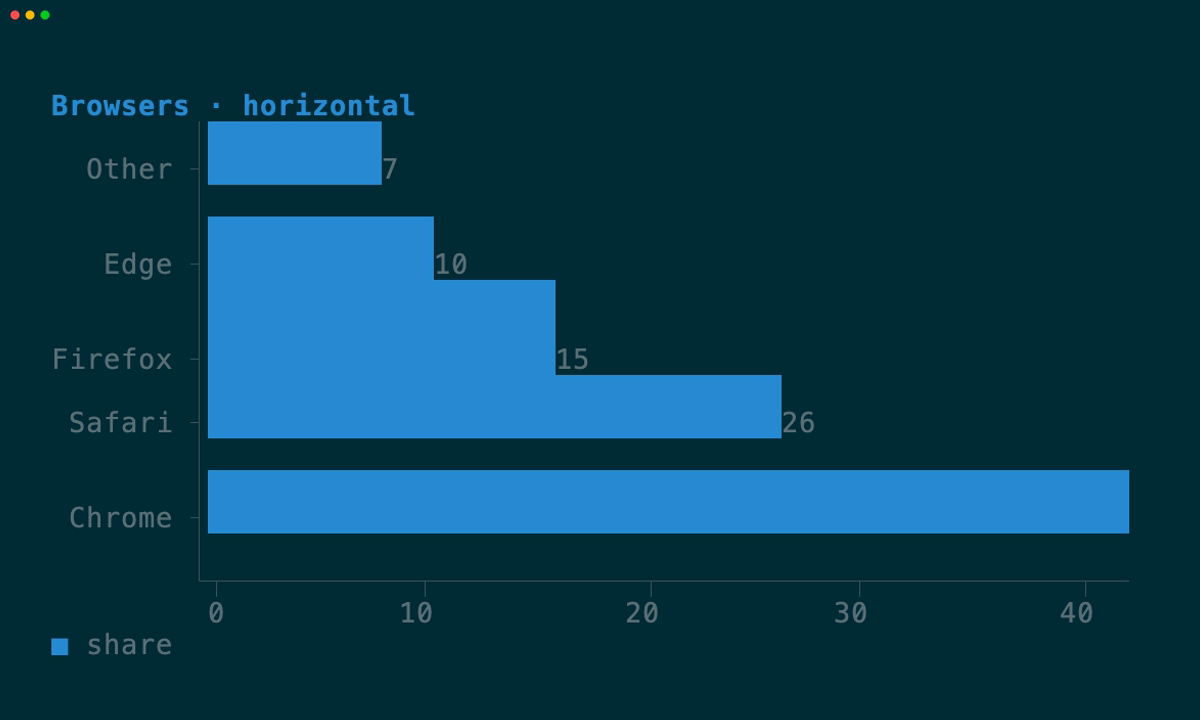

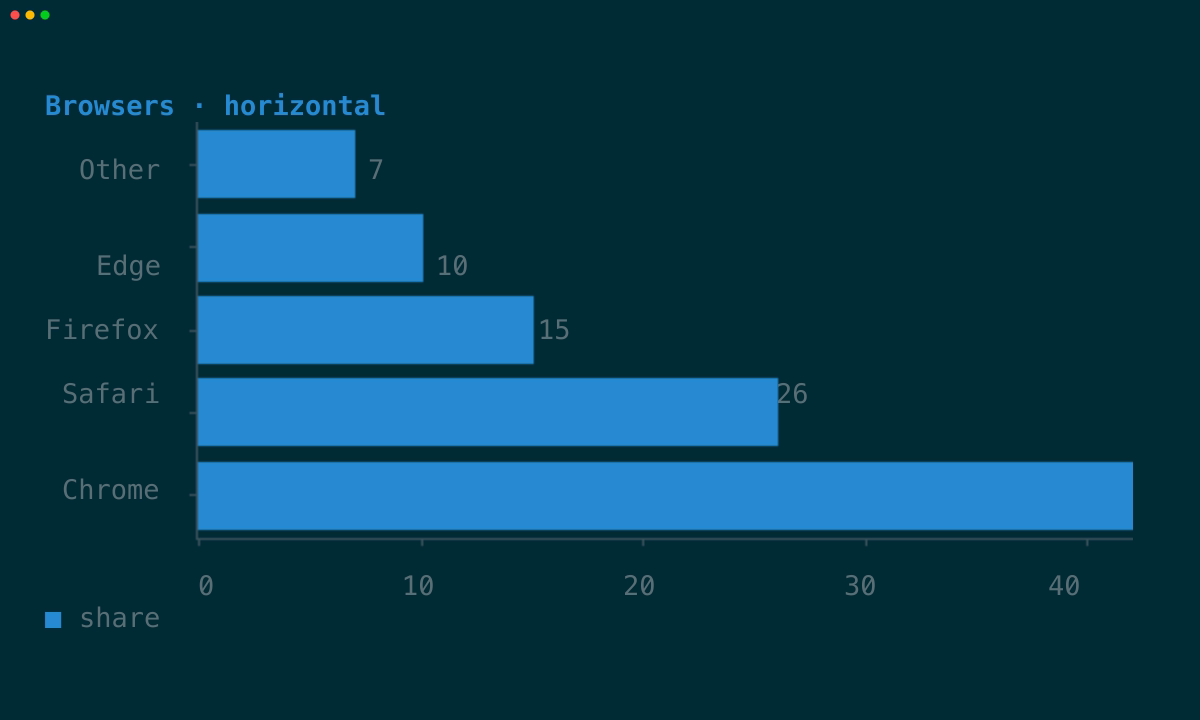

Horizontal

Chart::horizontal puts categories down the side, where a name gets a whole row of width instead of one column.

Cells	Graphics

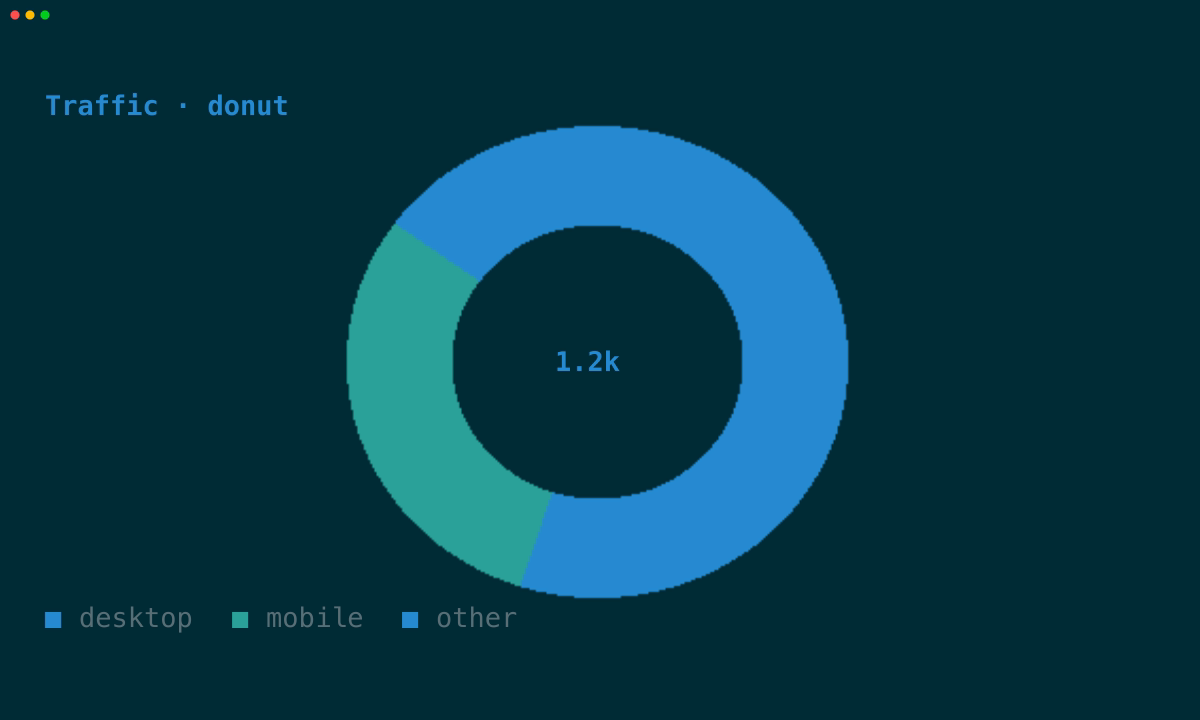

Donut

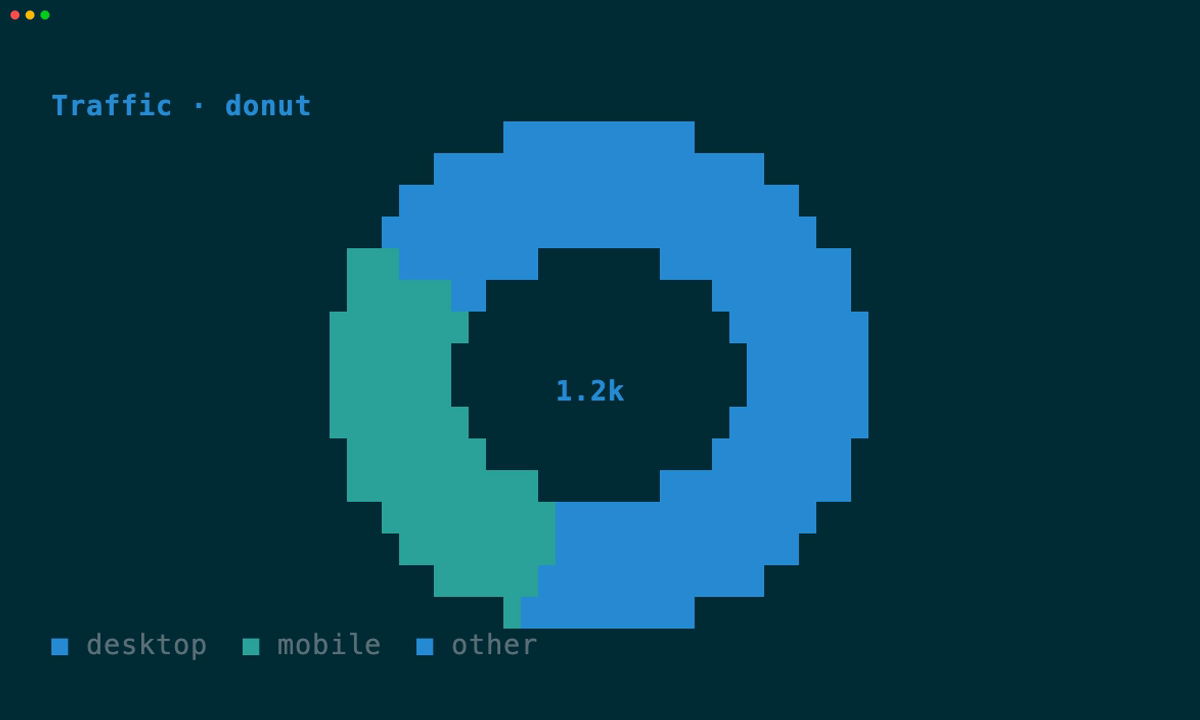

A ring with optional centre text — the one polar shape that stays readable in cells. Slices are named by the legend rather than by radial labels.

Cells	Graphics

Focus readout

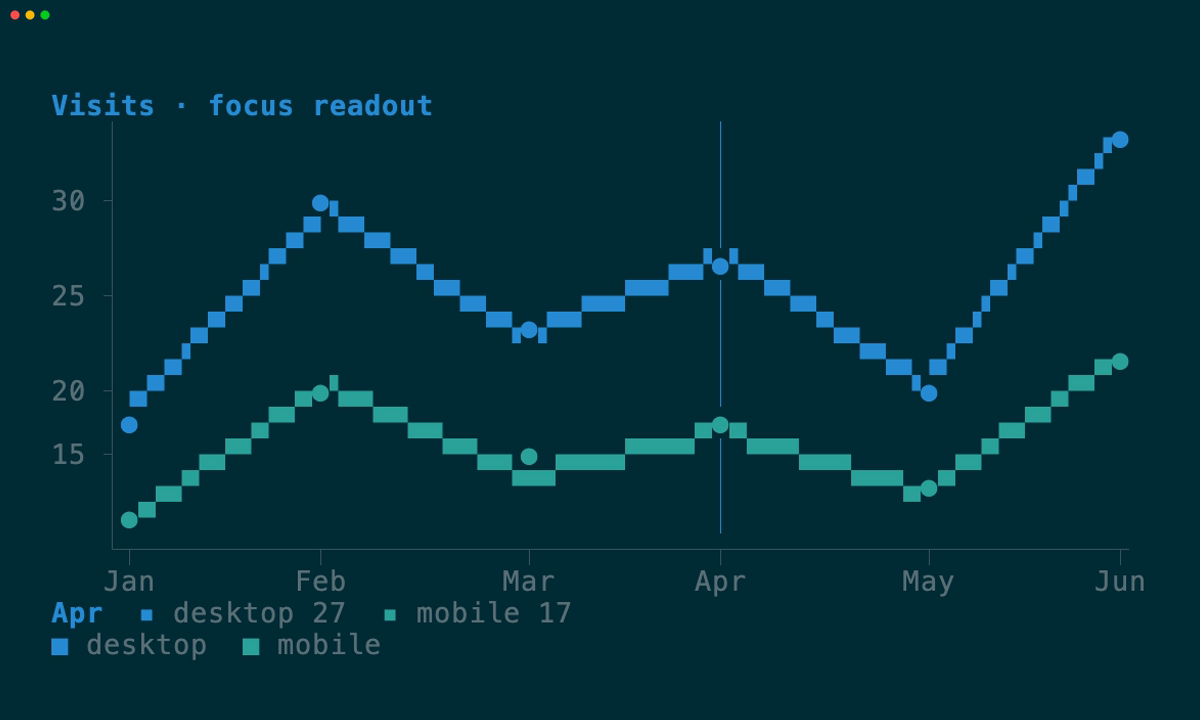

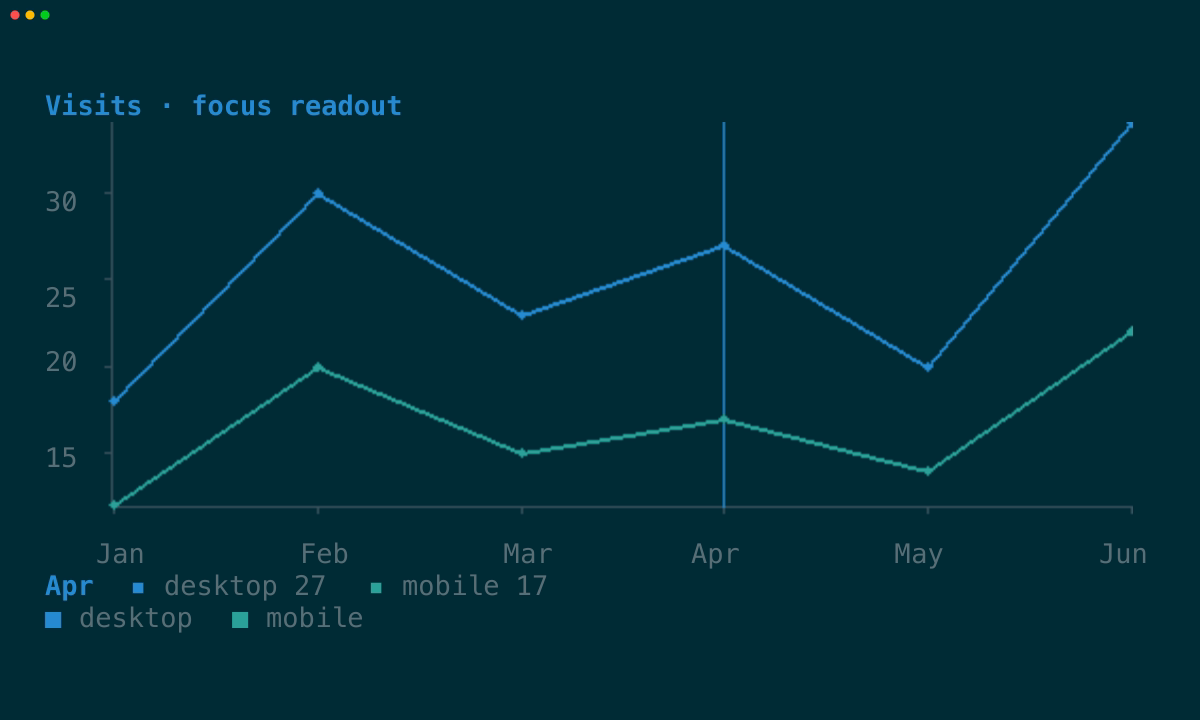

Chart::focus marks one position with a rule and lists every series’ value there — the terminal’s answer to a hover tooltip.

Cells	Graphics

Axes

Both axes carry tick labels by default. Ticks land on round values — a power of ten times 1, 2, 2.5, or 5 — so a reader gets numbers they recognize rather than the raw division of the domain, and the label precision follows the step: a step of 0.25 prints two decimals, a step of 20 prints none.

use tuika_charts::{Axis, Chart};

let chart = Chart::new()
    // Aim for four intervals and label them in milliseconds.
    .y_axis(Axis::new().ticks(4).format(|value| format!("{value:.0}ms")))
    // Give the label row back to the plot.
    .x_axis(Axis::hidden());

Labels never crowd out the chart they describe. The y labels claim a gutter left of the axis, and are dropped entirely rather than take more than half the width; x labels use the margin row the plot already reserved, so labelling that axis costs no plot height at all. Where x labels would collide, they are thinned left to right — a narrow chart shows fewer labels, never overlapping ones.

Both renderers draw tick labels as cells, because the graphics image covers the plot only. The same numbers therefore appear in the same places in both modes.

Stacking, grouping, and orientation

Several bar series in one chart sit side by side inside each category band by default, sharing it between them. Chart::stack combines them instead: Stack::Normal sums them, Stack::Percent sums and then scales every position to 100. Area series stack the same way, each resting on the one below.

Chart::horizontal swaps the axes. In a terminal this is often the better default for bars: a category name gets a whole row of width, rather than the single column a vertical bar leaves it.

When the value domain straddles zero, a rule is drawn along it so negative bars are read against the baseline rather than against the frame.

Annotations

Series::markers draws a glyph at every sample, keeping individual readings visible on a line that would otherwise only show a trend. Series::labels prints each value beside its mark.

A label annotates a reading and must never cover one: each is tried in a few positions around its mark and dropped if none is clear. Losing a label is a smaller loss than obscuring the value it describes.

Chart::focus marks one position: a rule through the plot, and a row beneath it naming that position and every series’ value there. The chart stays a pure view — the host owns the index and moves it in response to keys — so the same mechanism serves a keyboard cursor, a replayed session, or a fixed annotation.

Portable grammar

The shared grammar deliberately includes only features both paths can preserve:

finite numeric (x, y) points;
line, area, bar, scatter, horizontal-then-vertical step, and donut series;
multiple named and colored series;
automatic or explicit numeric x/y domains;
numeric or categorical axis tick labels, with an optional format hook;
stacking, bar grouping, and horizontal orientation;
sample markers, value labels, and a focused-position readout;
an optional title and legend.

Smooth curves, filled pie and radar geometry, gradients, icon marks, HTML/SVG marks, and renderer-specific styling are outside this portable model. That boundary prevents a chart from silently losing meaning when it moves to a terminal with different capabilities.

use tuika_charts::{Chart, Domain, Point, Series};

let chart = Chart::new()
    .title("API traffic")
    .x_domain(Domain::new(0.0, 6.0).unwrap())
    .series(Series::line("requests", [
        Point::new(0.0, 12.0),
        Point::new(1.0, 18.0),
        Point::new(2.0, 16.0),
    ]))
    .series(Series::area("volume", [
        Point::new(0.0, 9.0),
        Point::new(1.0, 12.0),
        Point::new(2.0, 11.0),
    ]))
    .series(Series::scatter("errors", [
        Point::new(0.0, 2.0),
        Point::new(1.0, 1.0),
        Point::new(2.0, 4.0),
    ]));

Automatic y domains reach the zero baseline whenever a chart carries a bar or area series. Those marks encode their value in the filled span, so a domain starting at the data minimum would show a bar of 1 beside a bar of 5 as a sliver beside a full column. Line, step, and scatter series are read as positions instead, and keep the tighter domain that resolves their variation. Set y_domain to override either choice.

Non-finite points are ignored. A chart with no finite data renders No chart data. Explicit domains are used verbatim and therefore control clipping directly.

Run the adaptive gallery with q or Esc to quit:

cargo run -p tuika-charts --example charts
cargo run -p tuika-charts --example charts -- --theme gruvbox-dark
